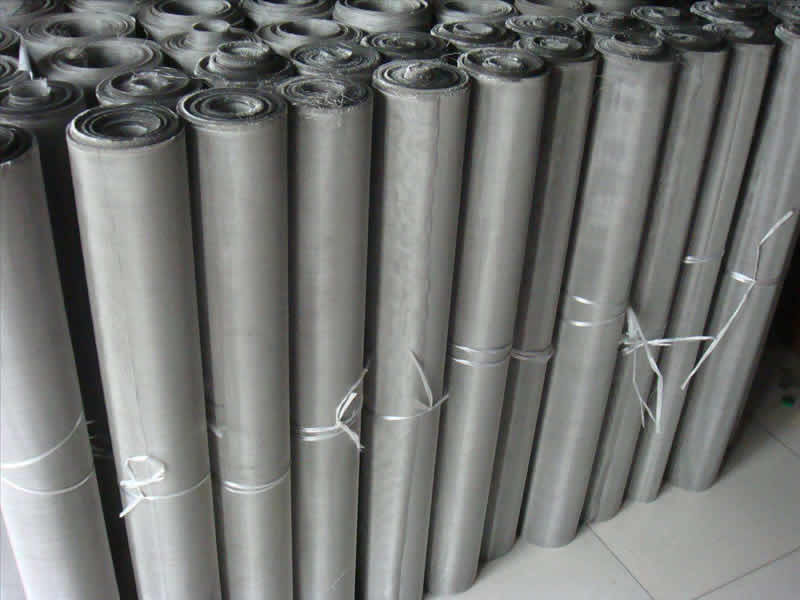

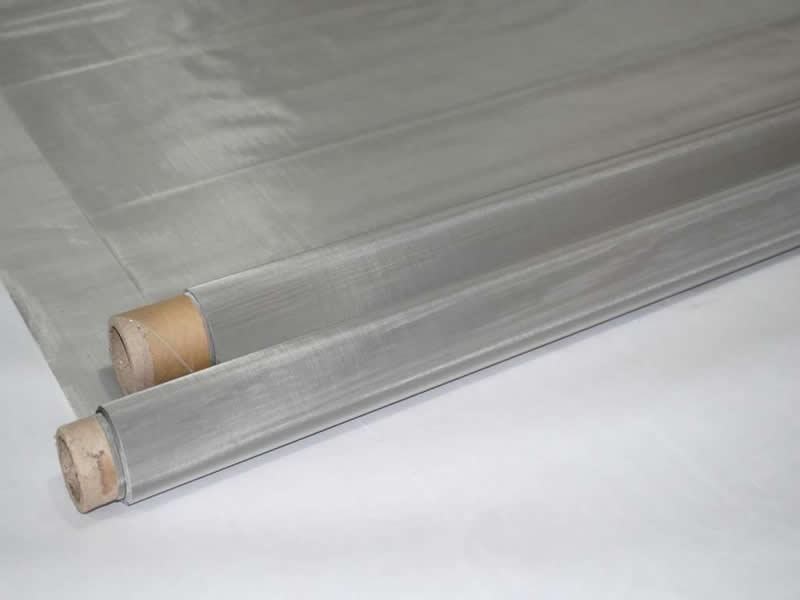

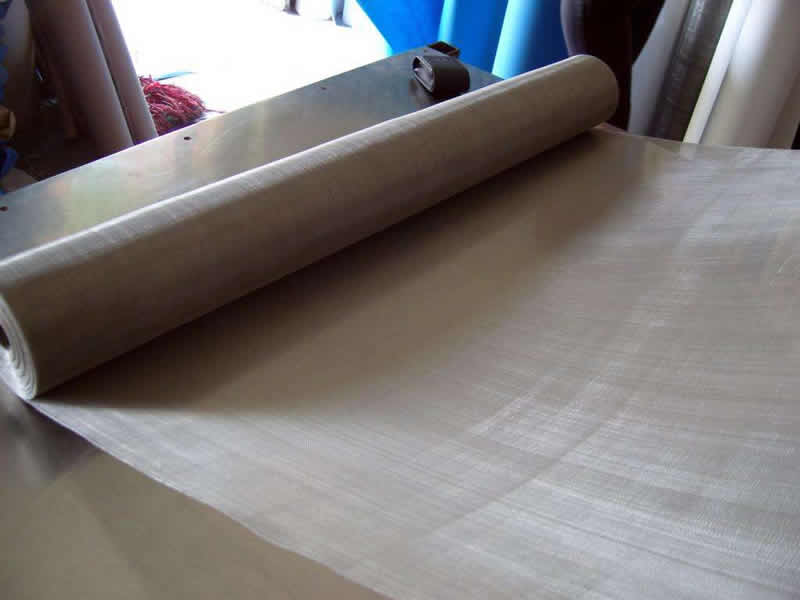

We produces Stainless Steel Wire Mesh from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L.

Characteristics: Square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm.

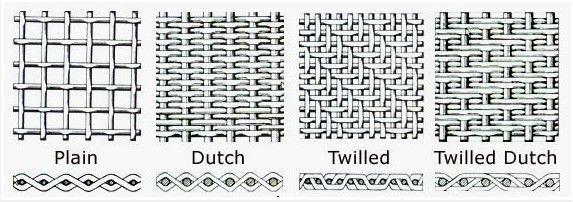

Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, dutch weave.

General Use: Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

Mesh/Inch	Wire Diameter		Aperture		Open Area	Weight(LB) /100 Square Foot
	Inch	MM	Inch	MM
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7
4X4	.063	1.60	.187	4.75	56.0	104.8
4X4	.047	1.19	.203	5.16	65.9	57.6
5X5	.041	1.04	.159	4.04	63.2	54.9
6X6	.035	.89	.132	3.35	62.7	48.1
8X8	.028	.71	.097	2.46	60.2	41.1
10X10	.025	.64	.075	1.91	56.3	41.2
10X10	.020	.51	.080	2.03	64.0	26.1
12X12	.023	.584	.060	1.52	51.8	42.2
12X12	.020	.508	.063	1.60	57.2	31.6
14X14	.023	.584	.048	1.22	45.2	49.8
14X14	.020	.508	.051	1.30	51.0	37.2
16X16	.018	.457	.0445	1.13	50.7	34.5
18X18	.017	.432	.0386	.98	48.3	34.8
20X20	.020	.508	.0300	.76	36.0	55.2
20X20	.016	.406	.0340	.86	46.2	34.4
24X24	.014	.356	.0277	.70	44.2	31.8
30X30	.013	.330	.0203	.52	37.1	34.8
30X30	.012	.305	.0213	.54	40.8	29.4
30X30	.009	.229	.0243	.62	53.1	16.1
35X35	.011	.279	.0176	.45	37.9	29.0
40X40	.010	.254	.0150	.38	36.0	27.6
50X50	.009	.229	.0110	.28	30.3	28.4
50X50	.008	.203	.0120	.31	36.0	22.1
60X60	.0075	.191	.0092	.23	30.5	23.7
60X60	.007	.178	.0097	.25	33.9	20.4
70X70	.0065	.165	.0078	.20	29.8	20.8
80X80	.0065	.165	.0060	.15	23.0	23.2
80X80	.0055	.140	.0070	.18	31.4	16.9
90X90	.005	.127	.0061	.16	30.1	15.8
100X100	.0045	.114	.0055	.14	30.3	14.2
100X100	.004	.102	.0060	.15	36.0	11.0
100X100	.0035	.089	.0065	.17	42.3	8.3
110X110	.0040	.1016	.0051	.1295	30.7	12.4
120X120	.0037	.0940	.0064	.1168	30.7	11.6
150X150	.0026	.0660	.0041	.1041	37.4	7.1
160X160	.0025	.0635	.0038	.0965	36.4	5.94
180X180	.0023	.0584	.0033	.0838	34.7	6.7
200X200	.0021	.0533	.0029	.0737	33.6	6.2
250X250	.0016	.0406	.0024	.0610	36.0	4.4
270X270	.0016	.0406	.0021	.0533	32.2	4.7
300X300	.0051	.0381	.0018	.0457	29.7	3.04
325X325	.0014	.0356	.0017	.0432	30.0	4.40
400X400	.0010	.0254	.0015	.370	36.0	3.3
500X500	.0010	.0254	.0010	.0254	25.0	3.8
635X635	.0008	.0203	.0008	.0203	25.0	2.63
