We have a variety of shaker screen: Hook Strip Flat Screens, Wave Type Screen, Steel Frame Shaker Screen, Composite Shaker Screen.

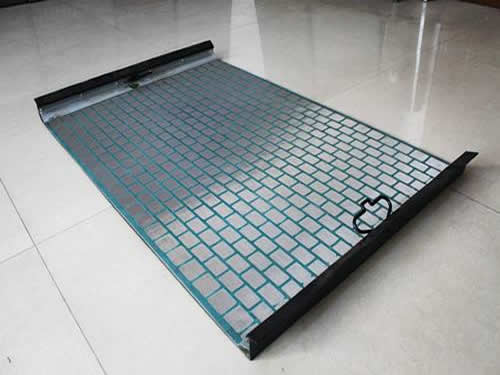

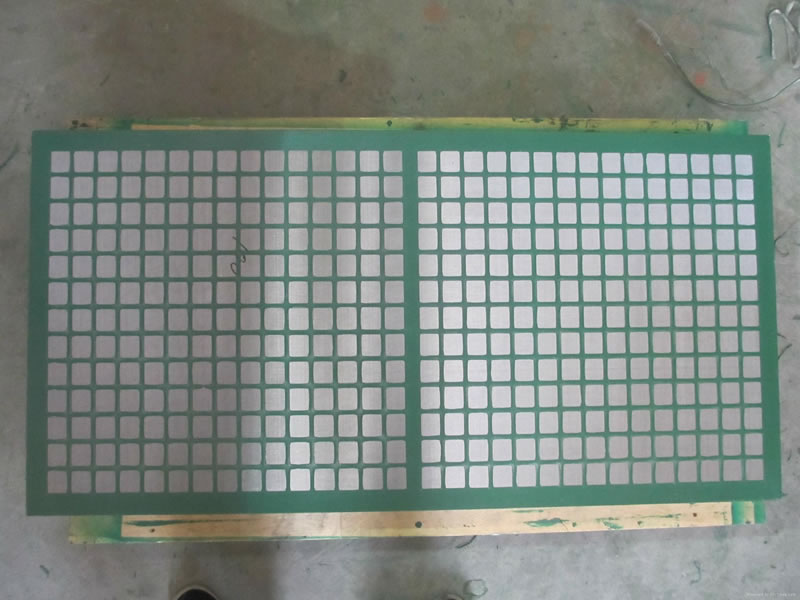

Hook Strip Flat Screens
Hook strip flat screens are the series applied most widely at present. These products can be fit for all kinds of shale shakers that use the hookstrip flat screen. This screen panel is constructed with two or three stainless steel layers bonded to a steel support plank. Accessary rubber plugs may be inserted to the rips or tears of the screen. By doing this, we can cut down time and the production cost. We can supply hookstrip flat screens with mesh sizes ranging from 12 to 275.
SPECIFICATION FOR HOOPSTRIP FLAT SHAKER SCREEN |
Model | Brand & Model for shaker | Mesh Range | Dimension (L*W ) | Weight kgs |
DX-07 | FLC2000 PWP | 20-325 | 1053*697mm | 4.8 |
DX-08 | FLC500 SERIES PWP | 20-325 | 1050*695mm | 6.1 |
DX-09 | FLC303M PWP | 20-325 | 846*697mm | 4.0 |
DX-10 | SWACO ALS-2 PWP | 20-325 | 1212*1141mm | 9.0 |
DX-11 | SWACO DFE | 20-325 | 1225*720mm | 7.0 |
ATT | Other models can be customized according to your specific size and requirments |

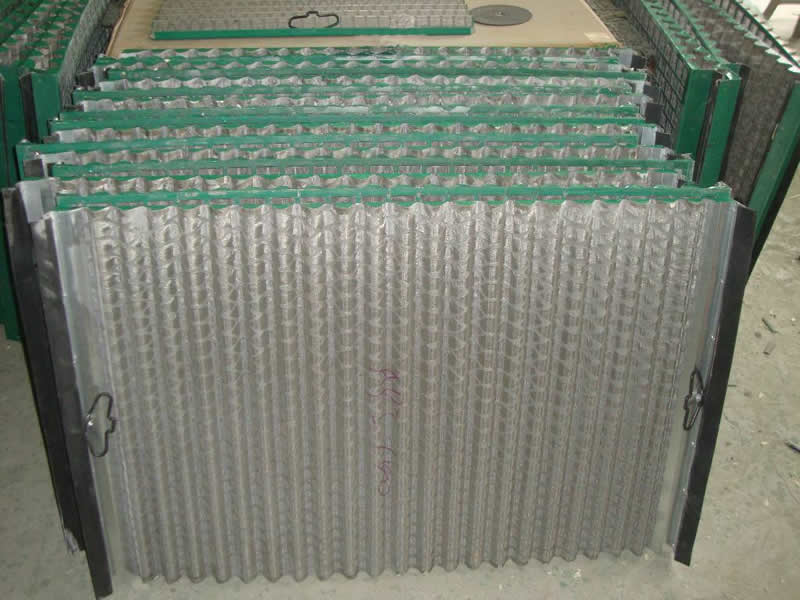

Wave Type Screen
Wave shaker screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers, after compounded and bended, with a steel backing plate combined together, increase the filtering area 120% to 150% compared to hookstrip flat screen, get a better effective.
SPECIFICATION FOR WAVE SHAKER SCREEN |
Model | Brand & Model for shaker | Mesh Range | Dimension (L*W ) | Weight kgs |
DX-12 | FLC2000 PMD | 20-325 | 1053*697mm | 6.0 |
DX-13 | FLC500 SERIES PMD | 20-325 | 1050*695mm | 7.0 |
DX-14 | FLC600 PMD | 20-325 | 626*7107mm | 7.0 |
DX-15 | HYPERFOOL PMD | 20-325 | 1070*570mm | 7.5 |
DX-16 | PMD | 20-325 | 1165*700mm | 6.5 |
ATT | Others model can be customized according to your specifical sizes and requirements |

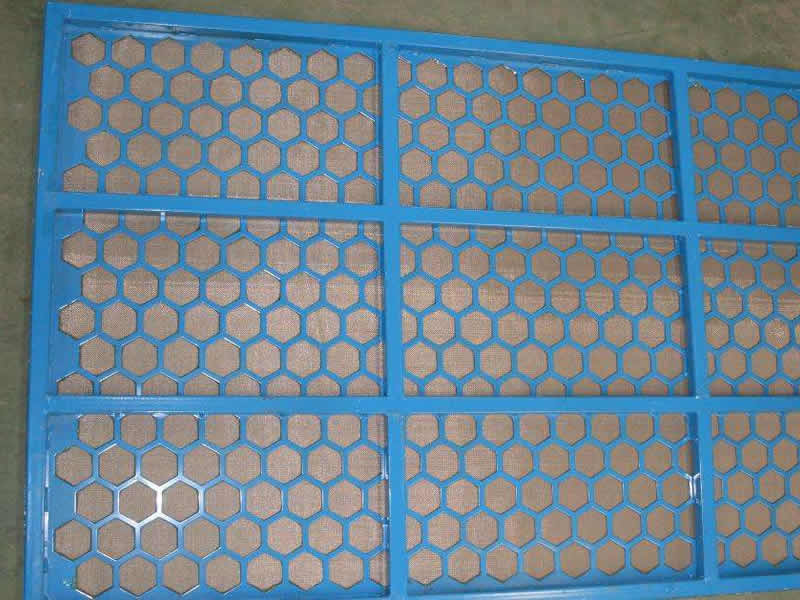

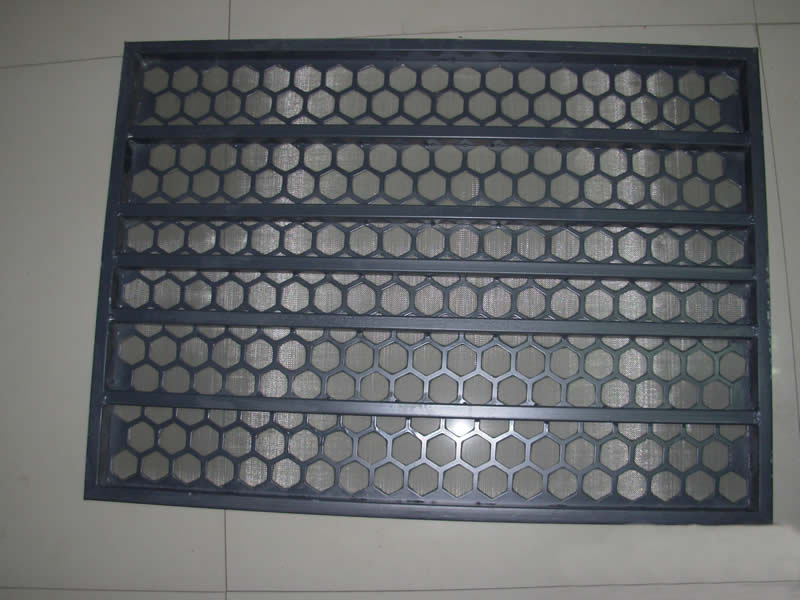

Steel Frame Shaker Screen
Steel Frame shaker screen panels use 304 or 316 stainless steel, it infinitely enhance the screen intensily and endurance, get a better filtering effective. each screen attach a specifical rubber plug together to repair damage, can save the time to replace the screen, increase the efficiency and reduce the cost.
SPECIFICATION FOR STEEL FRAME SHAKER SCREEN |
Model | Brand & Model for shaker | Mesh Range | Dimension (L*W ) | Weight kgs |
DX-17 | BRANDT BL-50/KING COBRA | 20-325 | 1251*635mm | 13.5 |
DX-18 | SWACO MONGOOSE | 20-325 | 1165*585mm | 14.0 |
DX-19 | KEMTRON 48 SERIES | 20-325 | 1220*720mm | 17.5 |
DX-20 | BRANDT VSM300 | 20-325 | 940*676mm | 12.6 |
DX-21 | SWACO D380 | 20-325 | 1180*712mm | 14.0 |
DX-22 | SWACO MUMUT | 20-325 | 1115*763mm | 14.0 |
ATT | Others model can be customized according to your specifical sizes and requirements |

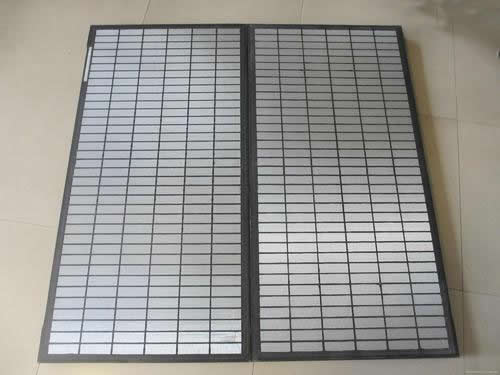

Composite Shaker Screen
Composite shaker screen use the 304 stainless steel materials. are constructed with 2-4 wire cloth layers combined compositely together, without steel backing plate, can get an effective filtering area and save the shaker screen lifetime.
SPECIFICATION FOR COMPOSITE SHAKER SCREEN |
Model | Brand & Model for shaker | Mesh Range | Dimension (L*W ) | Weight kgs |
DX-01 | NCS-300X2 | 20-325 | 1040*600mm | 1.6 |
DX-02 | ZCN | 20-325 | 1400*460mm | 2.6 |
DX-03 | NS-115/2 | 20-325 | 1150*1000mm | 2.9 |
DX-04 | JSS(U.S.A) | 20-80 | 927*914mm | 2.3 |
DX-05 | SSS(U.S.A) | 20-80 | 1524*1219mm | 4.6 |
DX-06 | BRANDT 4*5 | 20-325 | 1524*1220mm | 5.0 |
ATT | Others model can be customized according to your specifical sizes and requirements |
