Iron Mesh Series
< >

Formwork Mesh

Material: High quality stainless steel wire
Feature: Excellent resistance against acid, alkali
Application: Installed on the aluminum doors and Windows

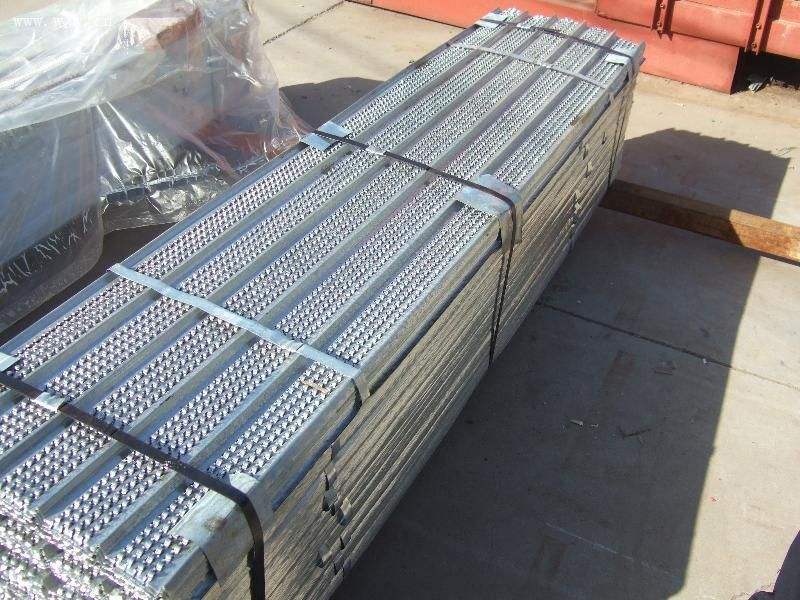

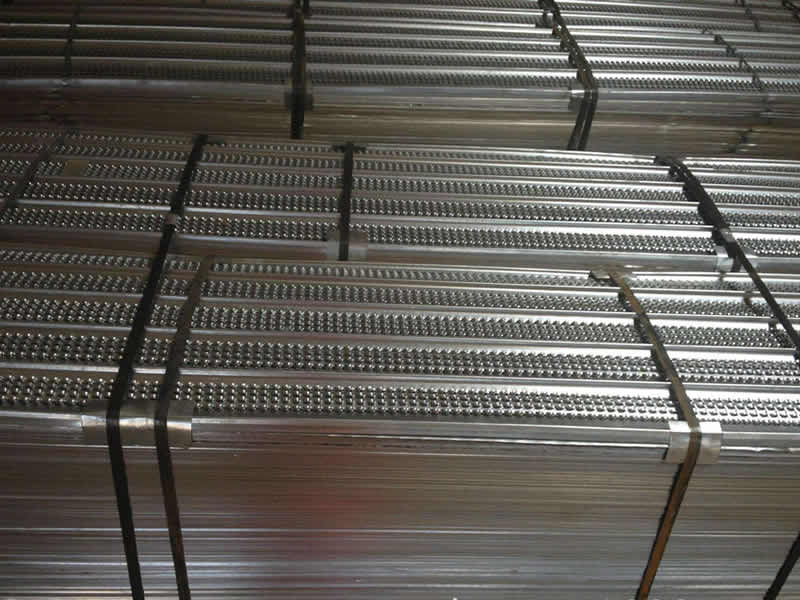

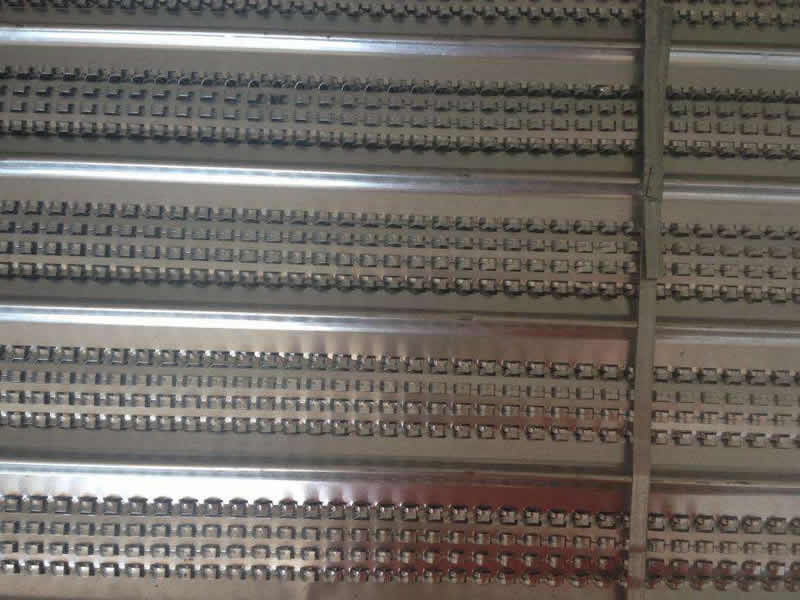

Formwork Mesh Lath has stiffening V ribs providing strength for its tensile force. Stiffened by longitudinal ribs, gives a uniform coat depth for large areas.

Provides an excellent plaster base. It's ideal for providing a high degree key of mechanical bonding with plaster or render.

Widely used as a background for plaster, render, stucco application in construction of suspended ceilings partition.

Formwork Mesh Lath has stiffening V ribs providing strength for its tensile force. Stiffened by longitudinal ribs, gives a uniform coat depth for large areas.

Provides an excellent plaster base. It's ideal for providing a high degree key of mechanical bonding with plaster or render.

Widely used as a background for plaster, render, stucco application in construction of suspended ceilings partition. Lath has stiffening V ribs providing strength for its tensile force. Stiffened by longitudinal ribs, gives a uniform coat depth for large areas.

Material: galvanized plate

Application: Concrete Construction

Usage: Concrete Construction Support

Size: Lenght 2200mm width 450mm

Surface: Hot Dipped Galvanized

Material Shootsize Weight
(lbs/sq.yd)
Pcs/bundle Yerds/hundle Yards/pallet
Galv.stee 27"X96" 2.75 10 20 1000
Galv.stee 27"X96" 3.4 10 20 1000

Model

Thickness

SwxLw

Rib height Rib distance Kg/m2 Width of piece
RLAG305080 0.30 16X11 8 150 085 600
RLAG355080 0.35 16X11 8 150 1.00 600
RLAG405080 0.40 16X11 8 150 1.14 600
RLAG455080 0.45 16X11 8 150 1.28 600
RLAG505080 0.50 16X11 8 150 1.43 600

Model

Thickness

SwxLw

Rib height Rib distance Kg/m2 Width of piece
RLAG307080 0.30 12X8 8 100 1.17 600
RLAG357080 0.35 12X8 8 100 1.36 600
RLAG407080 0.40 12X8 8 100 1.56 600
RLAG507080 0.50 12X8 8 100 1.95 600
