Razor Barbed Wire

Material: Iron Wire
Feature: Easy installation
Application: Warehouses, prisons

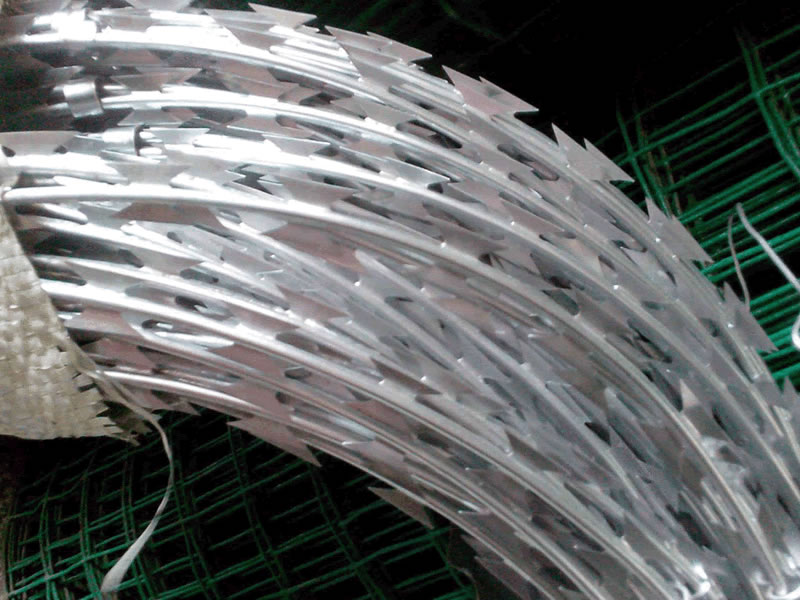

Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

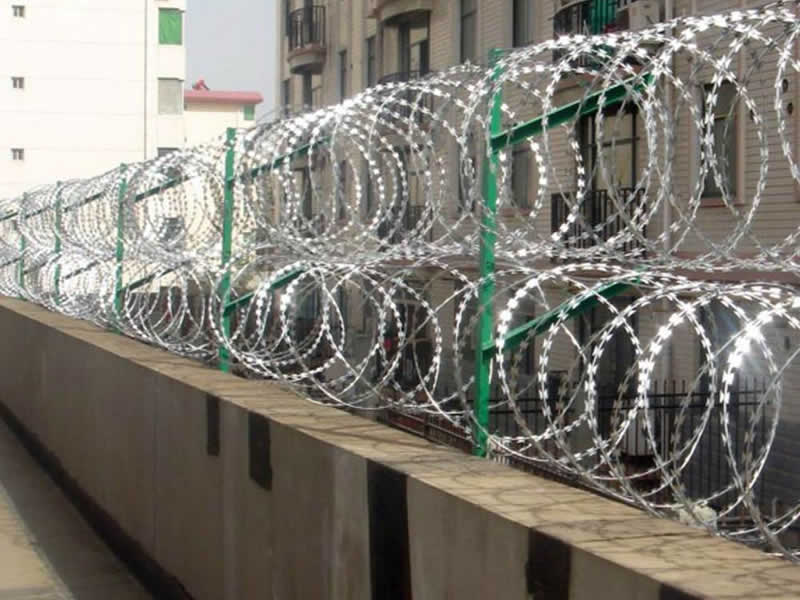

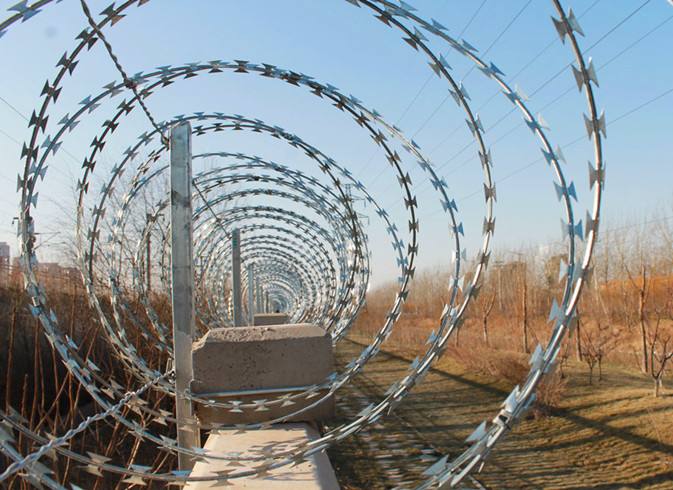

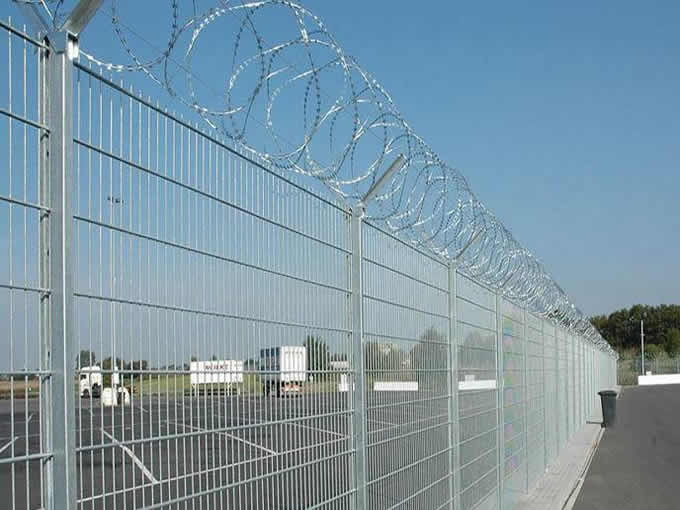

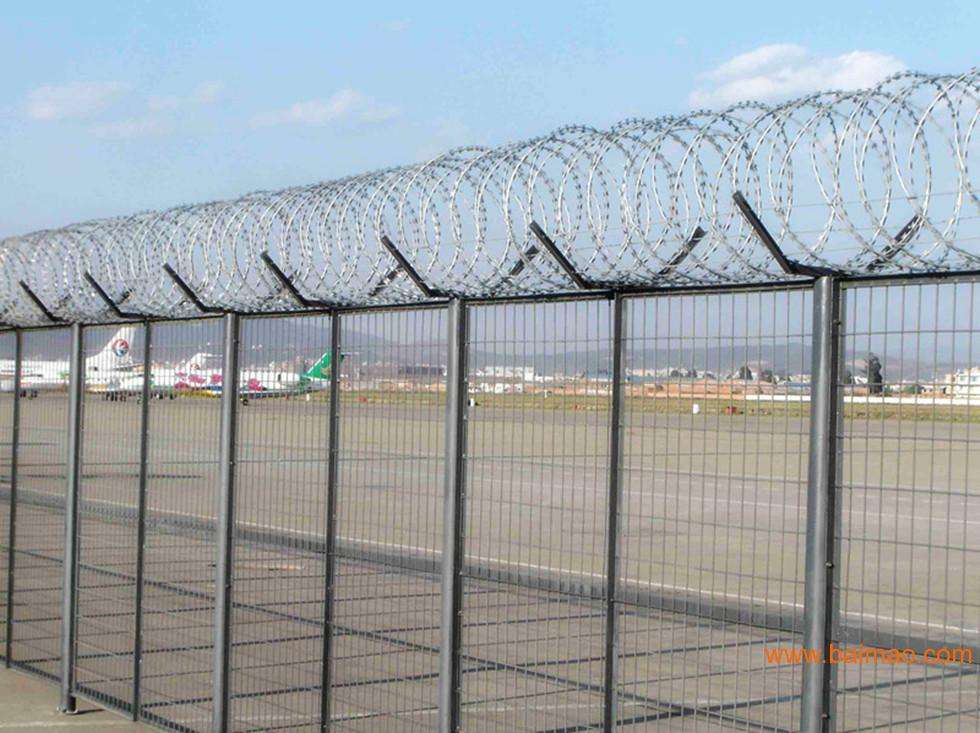

Razor type barbed wire is widely used in high-grade residence district, warehouses, prisons and in military fields and other sites requiring severe fencing and security. Razor wire can be classified into straight type razor wire, concertina coils, crossed type and flat type according to the installation models.

Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type
Reference Number Blade Style Thickness Wire Dia Barb
Length
Barb
Width
Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 25±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 25±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 35±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 36±1
BTO-28 0.5±0.05 2.5 28 15 46±1
BTO-30 0.5±0.05 2.5 30 18 46±1
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 101±2
