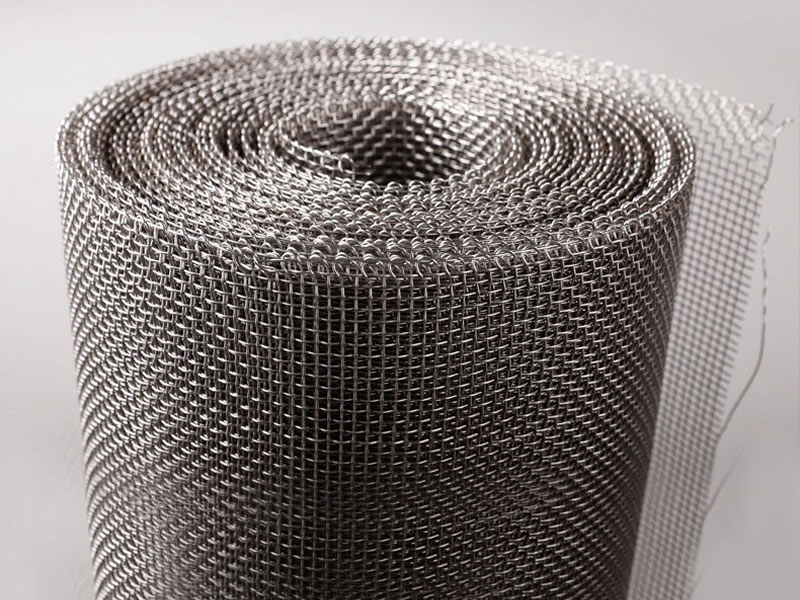

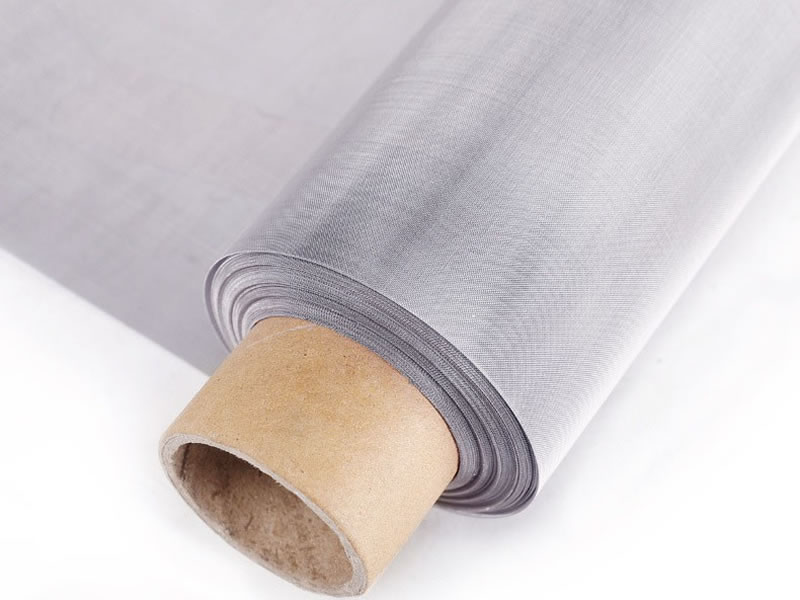

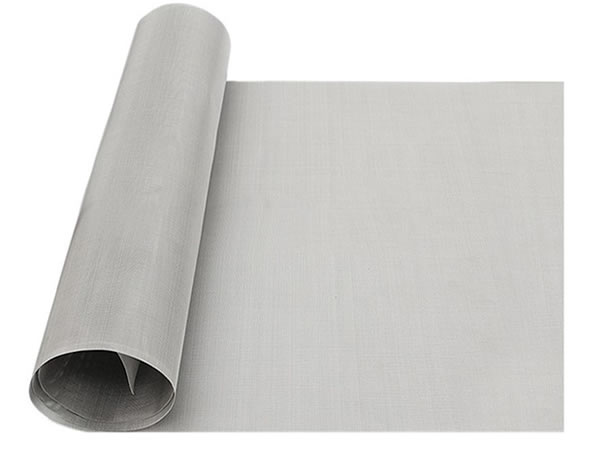

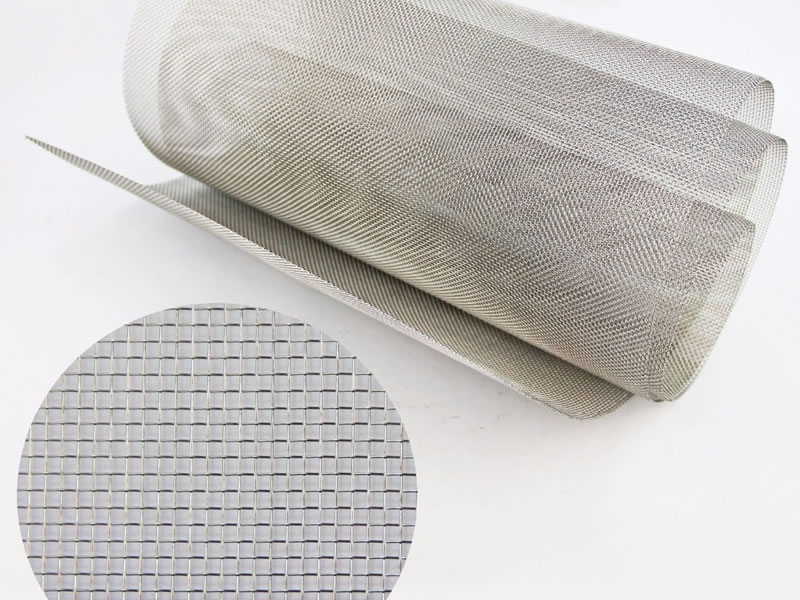

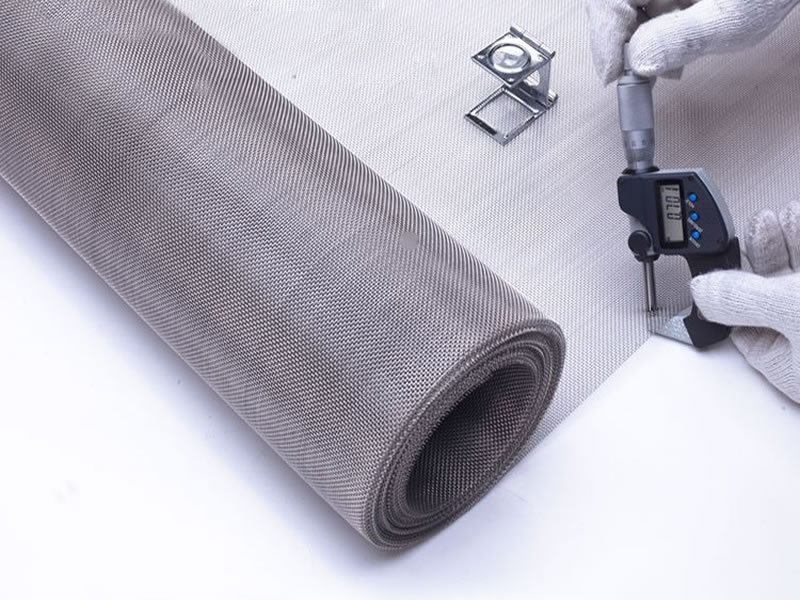

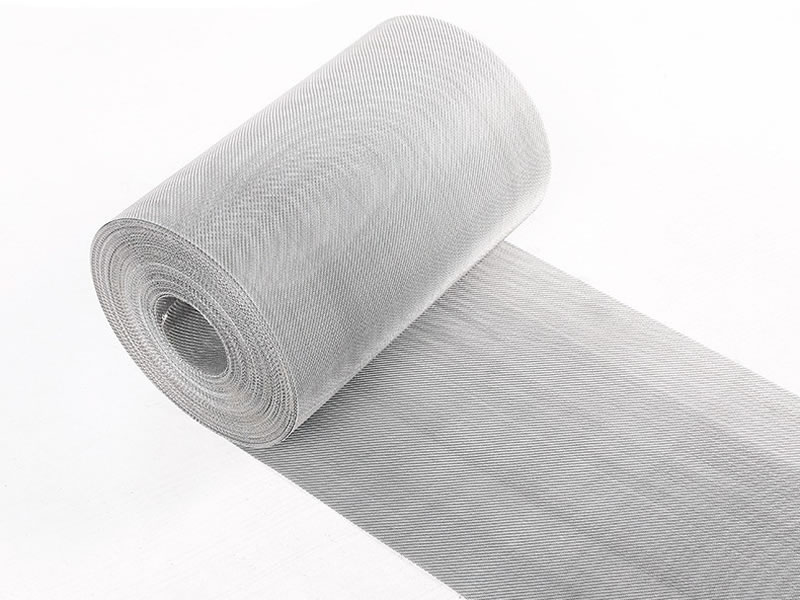

Monel series materials include Monel400,Monel401, Monel404, MonelR405 and Monel K-500. The most popular monel mesh is made of Monel 400 or Monel K-500.

Composition: Ni&Cu, Nickel copper alloy mesh

Weave type: plain and twill weave, dutch weave

Mesh count: from 1 to 350 mesh

Melting point: 1300℃ to 1350℃

Features: Superior corrosion resistance and acid-alkali resistance than stainless steel, High temperature resistance, high tensile strength and excellent hardness.

Application: Widely used in chemical and petrochemical industry and marine development. Seawater filtration, in the condition of acid, alkali, salt environment, chemical industry electrode, battery industry electrode, Electronic device shielding and so on. Customized, Acceptable as per your request.

Chemical Composition

Material	C	Mn	Si	S	Ni	Cu	Fe
Monel 400	≤0.30	≤2.00	≤0.50	≤0.024	≥63	28.0~34.0	≤2.5

Monel 400 Wire Mesh significantly resists de-aerated hydrochloric acid and hydrofluoric acids. It provides broad resistance to stress corrosion cracking in the fresh water and other corrosion conditions. It shows intense mechanical features at the subzero temperatures and firmness and toughness. It doesn't exhibit ductile to brittle transformation when quenched to fluid hydrogen temperature level.

Material	C	Mn	Si	S	Ni	Cu	Ti	AL	Fe
Monel k-500	≤0.25	≤1.50	≤0.05	≤0.01	≥63	27.0~33.0	0.35~0.85	2.30~3.15	≤2.0

Monel K500 Wire Mesh offers excellent resistance to corrosion as well as large strength and hardness. The strength of this alloy is retained up to 1200oF however it shows ductility and toughness up to 400oF. It has very high melting temperature of 2400oF to 2460oF. The Monel K500 alloy has almost three times higher yield strength and tensile strength as compare to Monel 400 mesh.

Application
Monel High Nickel Alloy Mesh is mainly used for filtration, in the condition of acid, alkali, salt environment,
chemical industry electrode, battery industry electrode, Electronic device shielding and so on.
